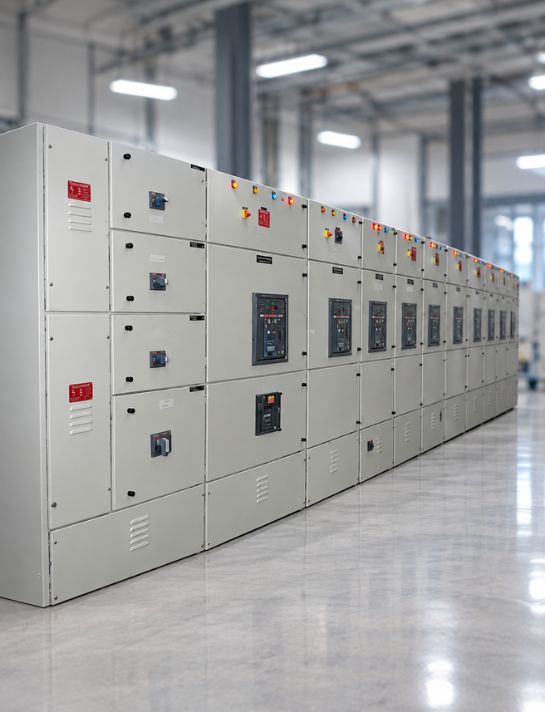

Nexus Engitech supplies utility electrical panels including AMF emergency transfer units, digital metering boards, outdoor feeder pillars and busduct systems. Built with weatherproof powder-coated steel enclosures, they ensure uninterrupted power supply and precise monitoring for commercial complexes.
- Automatic Mains Failure (AMF) and DG synchronizing panels ensure uninterrupted power supply
- Heavy-duty powder-coated galvanized steel enclosures rated for tough outdoor weather
- Real-time digital energy monitoring and sub-metering for commercial and industrial complexes
- Compact sandwich and air-insulated busducts for efficient power transfer
General Construction Specifications (Common)
| Enclosure Material | CRCA (Cold Rolled Close Annealed) sheet steel; SS304/SS316 on request |
| Sheet Thickness | Load frame: 2.0-3.0 mm | Doors/panels: 1.6-2.0 mm | Gland plate: 2.0-3.0 mm |
| Enclosure Type | Floor mounted (free-standing) / Wall mounted / Rack mounted |
| Protection (IP) Rating | IP42 (indoor) / IP54 (dusty indoor) / IP55-IP65 (outdoor, weatherproof) |
| Busbar Material | Electrolytic grade Aluminium or Copper, tin/silver plated |
| Paint / Finish | 7-tank pre-treatment + powder coating, RAL 7032 / 7035 (siemens grey) standard |
| Standards Compliance | IS 8623 / IEC 61439-1 & 2, IS 5039 (bus ducts), IS 3427 as applicable |
| Operating Voltage | 415V AC (LT), 3-Phase 4-Wire + Earth, 50 Hz (custom voltages available) |
| Short Circuit Rating | 25 kA / 35 kA / 50 kA for 1 sec (design-dependent) |

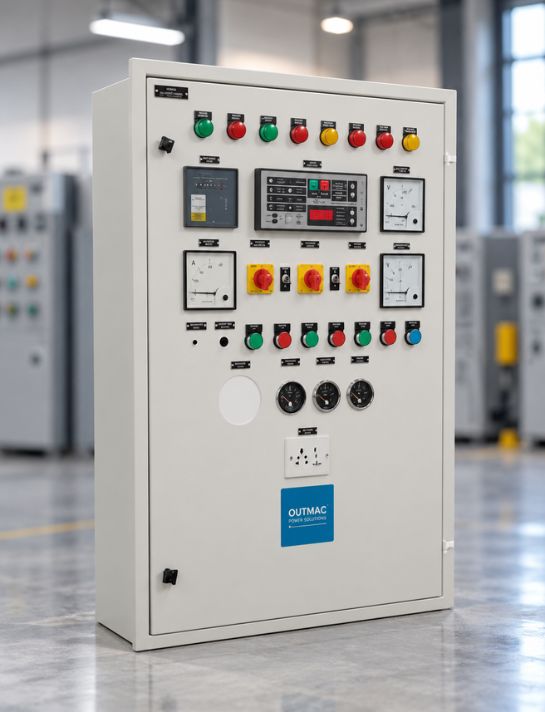

AMF / Synchronizing Panel
Automatic Mains Failure panel switches load from mains to DG set (and back) automatically on power failure. Synchronizing panels allow multiple DG sets / mains-DG to run in parallel.
| Voltage Rating | 415V AC, 3-Phase, 50 Hz |
| Current Rating | 100A to 4000A depending on DG/mains capacity |
| Standard Sizes (H x W x D) | 2000-2200 x 600-1000 x 600-800 mm |
| Switching Device | ATS / Motorized ACB or MCCB with interlocking |
| Controller | DG synchronizing controller with load sharing |
| IP Rating | IP42 / IP54 |
| Typical Applications | Hospitals, data centers, factories, buildings with DG backup or multiple generator sets. |

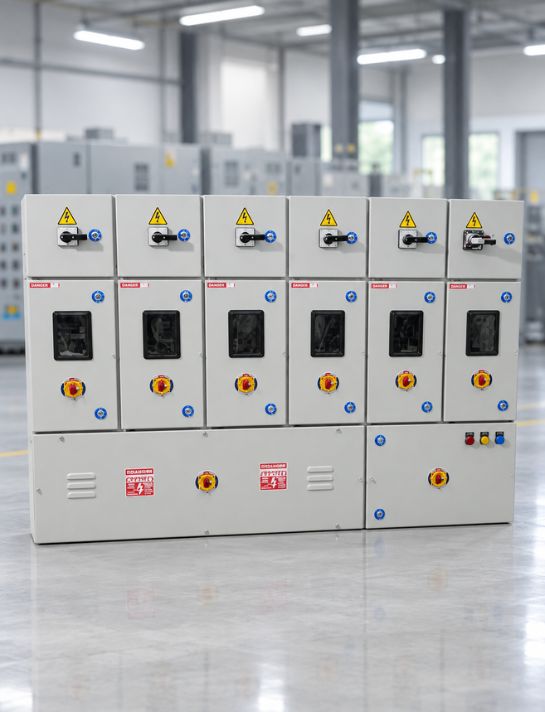

Metering Panel
Dedicated panel for energy metering (CT/PT operated or direct), often used at utility handover points or for tenant sub-metering in commercial buildings.
| Voltage Rating | 415V AC / 11kV (HT metering with CT-PT unit) |
| Current Rating | As per CT ratio selected (e.g., 100/5A to 2000/5A) |
| Standard Sizes (H x W x D) | 800-1200 x 600-800 x 600 mm |
| Metering Type | Direct / CT operated / CT-PT operated (HT) |
| Accuracy Class | 0.2S / 0.5S as per billing requirement |
| IP Rating | IP42 / IP54 |
| Typical Applications | Utility handover points, tenant billing, industrial energy audits. |

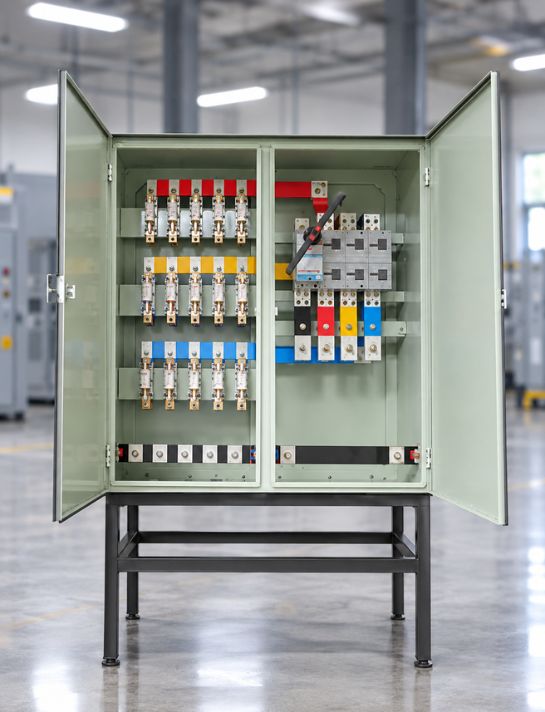

Feeder Pillar
Outdoor, weatherproof panel used to distribute power from an underground cable network to multiple outgoing feeders, typically for street lighting or area distribution networks.
| Voltage Rating | 415V AC, 3-Phase, 50 Hz |
| Current Rating | 200A to 800A incomer |
| Standard Sizes (H x W x D) | 1200-1500 x 600-900 x 400-600 mm |
| Mounting | Free-standing, outdoor, plinth mounted |
| Cable Entry | Bottom entry, underground cable |
| IP Rating | IP55 / IP65 (weatherproof, outdoor rated) |
| Typical Applications | Street lighting networks, township/campus power distribution, outdoor installations. |
Bus Duct / Busway
Enclosed, pre-fabricated conductor system used for carrying large currents between panels, transformers and switchgear as an alternative to cabling, offering compact and safe power transmission runs.
| Voltage Rating | 415V AC / 11kV (segregated phase busduct) |
| Current Rating | 800A to 6300A |
| Standard Sizes (Cross-section) | Custom per run length; standard length modules of 2-3 m |
| Type | Sandwich type / Air insulated busduct |
| Conductor | Aluminium or Copper, tin/silver plated |
| IP Rating | IP54 / IP55 |
| Typical Applications | Transformer-to-panel connections, riser risers in high-rise buildings, generator interconnections. |
