Nexus Engitech manufactures custom Power and Motor Control Panels (LT Panel, MCC, APFC) engineered for reliable electrical distribution and automated power factor correction. Built with heavy-duty electrolytic busbars and IP54/IP65 sheet steel enclosures, they meet international IEC 61439 standards.
- Custom Main Power Control Center (PCC), Motor Control Center (MCC) and APFC panels
- Heavy-duty electrolytic aluminum and copper busbars designed for high short-circuit fault levels
- APFC capacitor banks optimize power factor, lowering energy bills and utility penalties
- Fully compartmentalized sheet steel enclosure compliant with IEC 61439
General Construction Specifications (Common)
| Enclosure Material | CRCA (Cold Rolled Close Annealed) sheet steel; SS304/SS316 on request |
| Sheet Thickness | Load frame: 2.0-3.0 mm | Doors/panels: 1.6-2.0 mm | Gland plate: 2.0-3.0 mm |
| Enclosure Type | Floor mounted (free-standing) / Wall mounted / Rack mounted |
| Protection (IP) Rating | IP42 (indoor) / IP54 (dusty indoor) / IP55-IP65 (outdoor, weatherproof) |
| Busbar Material | Electrolytic grade Aluminium or Copper, tin/silver plated |
| Paint / Finish | 7-tank pre-treatment + powder coating, RAL 7032 / 7035 (siemens grey) standard |
| Standards Compliance | IS 8623 / IEC 61439-1 & 2, IS 5039 (bus ducts), IS 3427 as applicable |
| Operating Voltage | 415V AC (LT), 3-Phase 4-Wire + Earth, 50 Hz (custom voltages available) |
| Short Circuit Rating | 25 kA / 35 kA / 50 kA for 1 sec (design-dependent) |

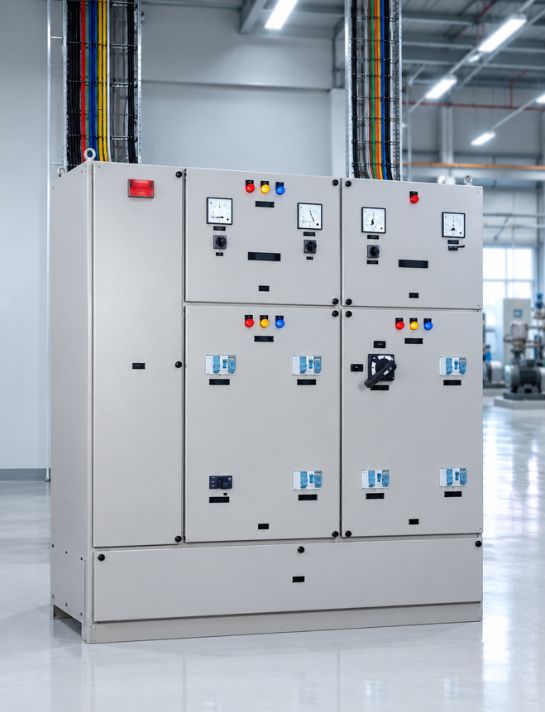

LT Panel (Low Tension Panel) / PCC (Power Control Center)
Main incoming and outgoing power distribution panel for LT (415V) installations. Houses ACBs/MCCBs for incomer and feeder protection, metering and busbar distribution. Forms the backbone of a facility\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\'s electrical distribution system.
| Voltage Rating | 415V AC, 3-Phase, 50 Hz |
| Current Rating | 800A to 6300A (busbar rated) |
| Standard Sizes (H x W x D) | 2200 x 800-3000 x 800-1000 mm (modular, multi-cubicle) |
| Form of Construction | Form 2b, 3a, 3b, 4a, 4b (as per IEC 61439-2) |
| Breaking Devices | ACB (Air Circuit Breaker) / MCCB incomer, MCCB/MCB outgoing |
| IP Rating | IP42 / IP54 |
| Typical Applications | Substations, industrial plants, commercial buildings, data centers, main LT distribution rooms. |

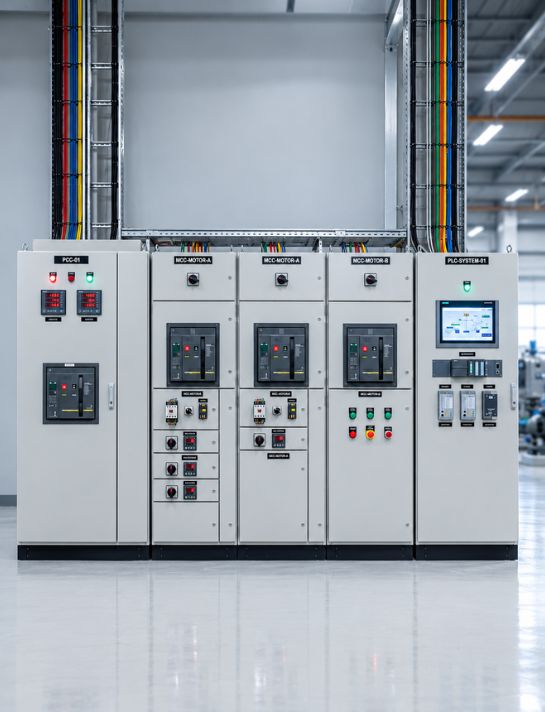

MCC (Motor Control Center)
Modular panel used to control and protect multiple motors from a centralized location. Each motor feeder is housed in a withdrawable or fixed module comprising contactor, overload relay, MCCB/MPCB and indication.
| Voltage Rating | 415V AC, 3-Phase, 50 Hz |
| Current Rating | Per feeder: 16A-630A | Bus rated up to 4000A |
| Standard Sizes (H x W x D) | 2200 x 600-2400 x 600-800 mm (per vertical section 600-800 wide) |
| Feeder Type | DOL, Star-Delta, VFD, Soft Starter feeders |
| Construction | Fixed / Semi-withdrawable / Fully draw-out type |
| IP Rating | IP42 / IP54 |
| Typical Applications | Process plants, water treatment plants, cement, steel, pumping stations with multiple motor loads. |

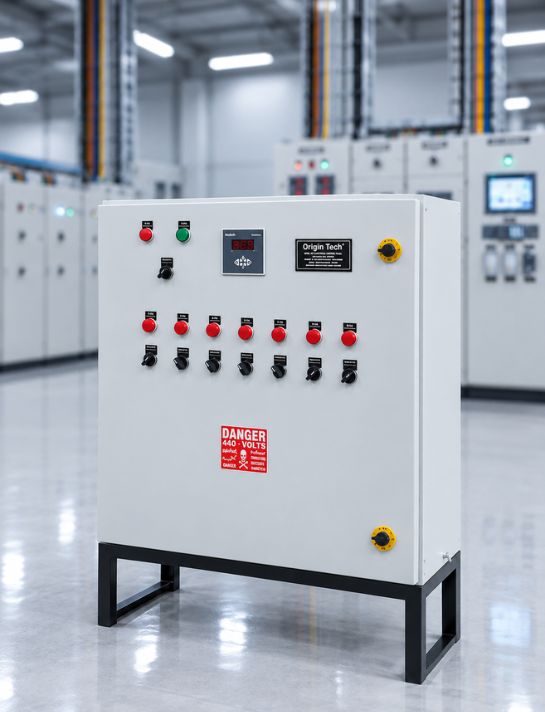

APFC Panel (Automatic Power Factor Correction)
Automatically switches capacitor banks in and out using a power factor controller relay to maintain the target power factor, reducing reactive power penalties and improving system efficiency.
| Voltage Rating | 415V AC, 3-Phase, 50 Hz |
| Capacitor Bank Rating | 25 kVAR to 1000+ kVAR (in steps of 12.5/25/50 kVAR) |
| Standard Sizes (H x W x D) | 2000 x 600-1200 x 600-800 mm |
| Switching Device | Capacitor duty contactors / Thyristor switching (fast APFC) |
| Controller | 6/8/12/14-stage microprocessor-based PF controller |
| IP Rating | IP42 / IP54 |
| Typical Applications | Factories, commercial complexes, any installation billed on power factor by the utility. |
