Power Distribution & Control Panels (VFD, DB, PLC)
Power Distribution & Control Panels (VFD, DB, PLC)
Category: Electric Panel Boards
Our advanced Power Distribution and Control Panels integrate PLC systems, VFD drive cabinets and custom distribution boards for industrial process automation. Designed for smooth motor control and thermal efficiency, they deliver reliable operational sequencing for HVAC, water and manufacturing plants.
- Integrated PLC control panels, VFD drive cabinets and custom distribution boards
- Smooth motor acceleration, speed variation and automated sequencing control
- Built-in exhaust cooling, surge protection devices (SPD) and high-durability switchgear
- Tailored for water treatment plants, HVAC systems and manufacturing lines
General Construction Specifications (Common)
| Enclosure Material | CRCA (Cold Rolled Close Annealed) sheet steel; SS304/SS316 on request |
| Sheet Thickness | Load frame: 2.0-3.0 mm | Doors/panels: 1.6-2.0 mm | Gland plate: 2.0-3.0 mm |
| Enclosure Type | Floor mounted (free-standing) / Wall mounted / Rack mounted |
| Protection (IP) Rating | IP42 (indoor) / IP54 (dusty indoor) / IP55-IP65 (outdoor, weatherproof) |
| Busbar Material | Electrolytic grade Aluminium or Copper, tin/silver plated |
| Paint / Finish | 7-tank pre-treatment + powder coating, RAL 7032 / 7035 (siemens grey) standard |
| Standards Compliance | IS 8623 / IEC 61439-1 & 2, IS 5039 (bus ducts), IS 3427 as applicable |
| Operating Voltage | 415V AC (LT), 3-Phase 4-Wire + Earth, 50 Hz (custom voltages available) |
| Short Circuit Rating | 25 kA / 35 kA / 50 kA for 1 sec (design-dependent) |

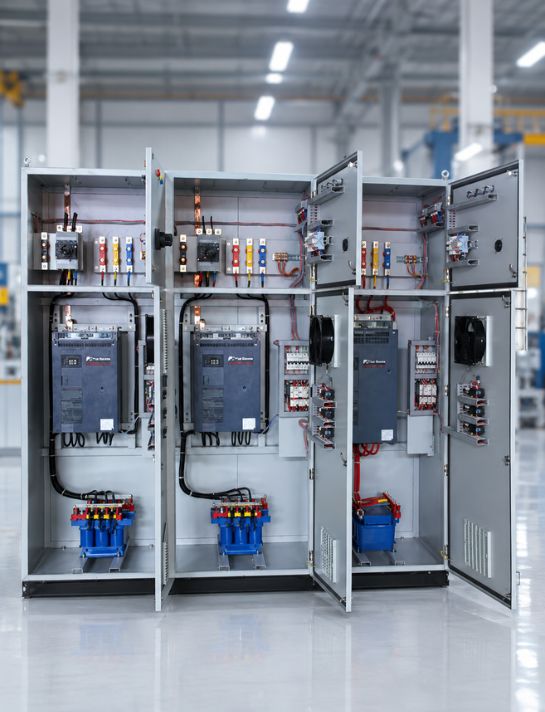

VFD Panel (Variable Frequency Drive Panel)
Houses variable frequency drives to control motor speed and torque for energy savings and process control, with associated input/output protection, filters and cooling arrangement.
| Voltage Rating | 415V AC, 3-Phase, 50 Hz (LV); HT VFDs on request |
| Drive Rating | 0.5 HP to 500+ HP per drive |
| Standard Sizes (H x W x D) | 2000-2200 x 600-1000 x 600-900 mm |
| Cooling | Forced ventilation / AC cooled (for high-rating drives) |
| Protection Features | Input isolator, line reactor/filter, output contactor, bypass (optional) |
| IP Rating | IP42 / IP54 |
| Typical Applications | Pumps, fans, conveyors, HVAC systems and any variable-speed process application. |

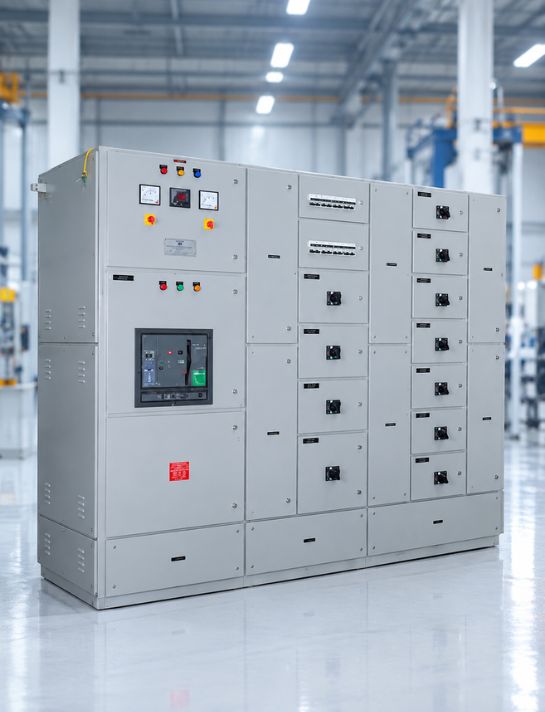

Distribution Board (DB / MDB / SDB)
Distributes incoming power to multiple smaller outgoing circuits (lighting, power sockets, sub-feeders) through MCBs/RCCBs/isolators. Available as Main DB, Sub DB or Final DB.
| Voltage Rating | 240V/415V AC, Single/3-Phase |
| Current Rating | 63A to 800A incomer; 6A-63A outgoing MCBs |
| Standard Sizes (H x W x D) | 400-1200 x 300-800 x 150-300 mm |
| Mounting | Wall mounted / Flush mounted / Floor mounted (for larger MDBs) |
| Ways / Outgoing | 4-way to 36-way (modular MCB/RCCB mounting) |
| IP Rating | IP42 / IP54 / IP65 (outdoor) |
| Typical Applications | Residential, commercial buildings, factories - final power/lighting distribution. |

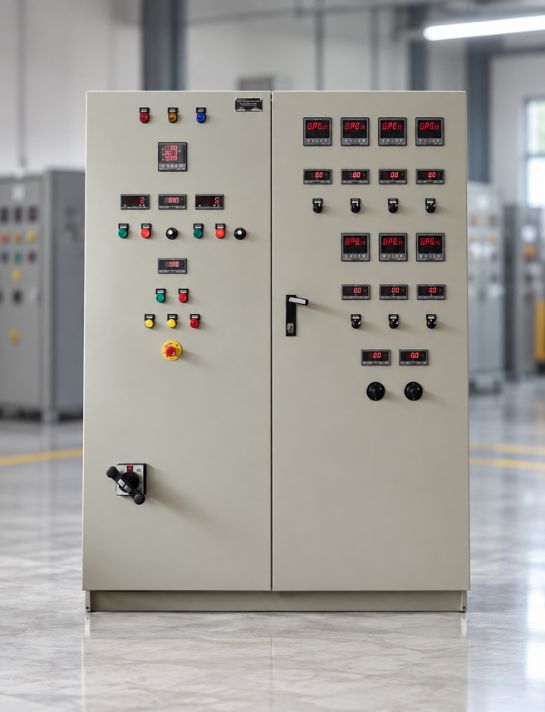

Control Panel / PLC Panel
Houses PLCs, relays, HMIs, control wiring, timers and indication for automation and process control of machinery or plant sections. Built to customer logic and I/O requirements.
| Voltage Rating | 230V AC / 24V DC control voltage |
| I/O Capacity | Customized - 16 to 500+ I/O points depending on application |
| Standard Sizes (H x W x D) | 600-2000 x 400-1200 x 300-600 mm |
| Components | PLC, HMI/SCADA interface, relays, terminal blocks, control MCBs |
| Mounting | Wall mounted / Floor standing / Desktop console type |
| IP Rating | IP54 / IP65 |
| Typical Applications | Automated machinery, process plants, packaging lines, SCADA-integrated systems. |
