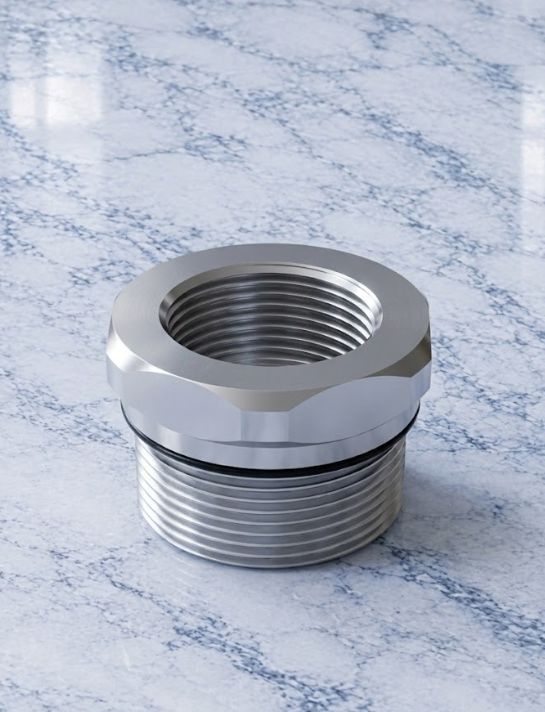

Reducer (Metric Type)
Reducer (Metric Type)
Category: Cable Gland Accessories
Nexus Engitech Metric Reducers enable smaller cable glands to fit into oversized metric enclosure ports without re-drilling panel walls. Crafted from solid extruded brass, they preserve enclosure structural integrity and achieve tight environmental sealing when installed with appropriate thread washers.
- Reduces oversized metric entry ports down to smaller cable gland threads
- Eliminates the need to re-drill or modify existing panel enclosures
- Achieves leak-proof environmental sealing with appropriate thread gaskets
- Solid extruded brass construction ensures high torque tolerance
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | M16 to M100 & NPT-to-NPT combinations as listed |
| Threads | Metric, NPT, BSP & PG |
| Body | BS 2874, SS316L |
| Material finish | Natural finish / nickel finish |
| Operating temperature | −20°C to +120°C |
| Ingress protection | IP67 |
| Standards | IEC 60079-0:2017 |
Size / Selection Table
| Selection parameter | Source catalogue data |
|---|---|
| Conversion families | Metric-to-metric and metric-to-NPT |
| Size range | M16-M100 family |
| Code family | VMRM series |
