Earth Tag
Earth Tag
Category: Cable Gland Accessories

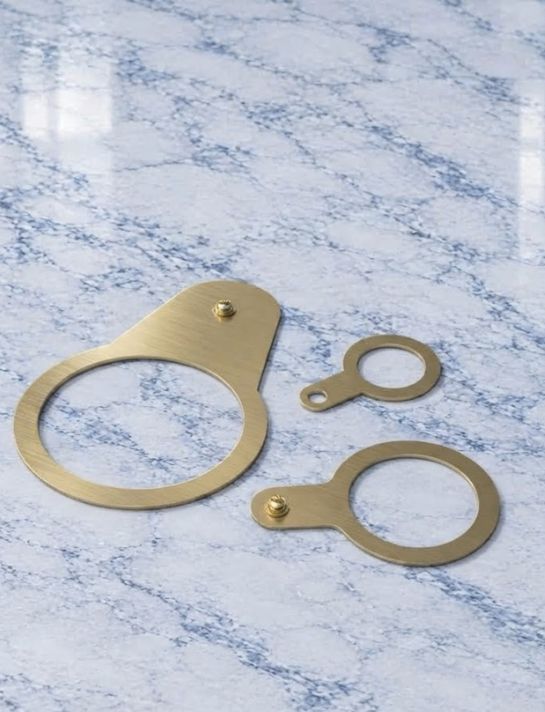

Nexus Engitech Earth Tags provide a reliable low-resistance earth bonding path between brass cable glands and electrical enclosure walls. Manufactured from high-conductivity brass with pre-drilled terminal holes, they guarantee maximum safety during fault current dissipation in industrial power networks.
- High-conductivity brass plate ensures positive earth fault bonding
- Pre-drilled terminal hole simplifies earthing conductor wire attachment
- Available in all standard Metric and NPT thread sizes for cable glands
- Crucial for maintaining electrical safety in industrial distribution
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | M16 to M100 and NPT sizes up to 3 in as listed |
| Body | BS 2874, SS316L |
| Material finish | Natural finish or nickel finish |
| Standards | IEC 60079-0:2017 |
| Application | Provides earth-bonded connection between cable gland entry and equipment |
| Options | Available with/without screw and washer; plating options include nickel, chrome and tin |
Size / Selection Table
| Size | Outer Dia | Length | Screw |
|---|---|---|---|
| M16 | 24 | 43.5 | M6 |
| M20 | 27.5 | 48 | M6 |
| M25 | 34 | 57 | M6 |
| M32 | 43 | 67 | M6 |
| M40 | 52 | 77 | M6 |
| M50 | 63 | 90 | M6 |
| M63 | 78 | 114 | M6 |
| M75 | 93 | 131 | M6 |
| M90 | 111 | 158 | M6 |
| M100 | 122 | 189 | M6 |
