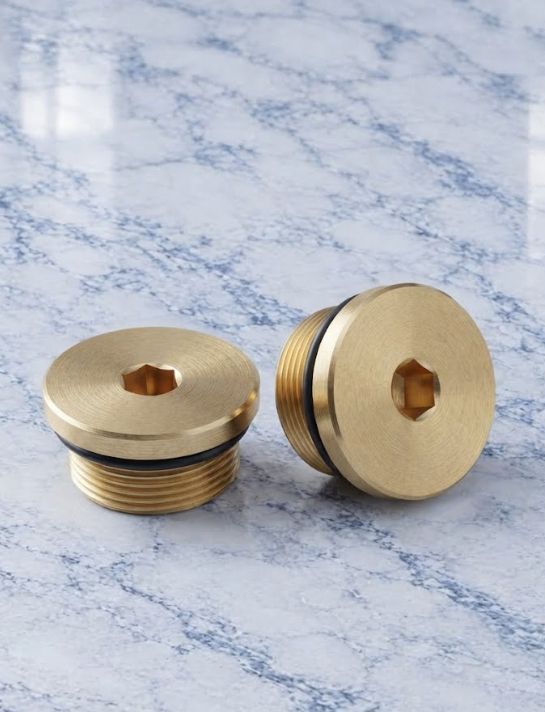

Allen Stop Plug (Flame-Proof)
Allen Stop Plug (Flame-Proof)
Category: Cable Gland Accessories
Designed for compact flush mounting, Allen Stop Plugs provide certified Ex d flameproof sealing for unneeded threaded entries in Ex equipment. Their internal hex socket construction ensures a low-profile fit while resisting extreme explosion pressures and environmental atmospheric degradation.
- Internal hex socket design allows flush fitting without protruding from enclosure
- Certified for hazardous Ex d and Ex e environments to maintain explosion safety
- High-grade metallic build resists high internal explosion pressures
- Available in Metric, NPT and BSP thread sizes for versatile panel maintenance
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 20 mm to 100 mm |
| Body | BS 2874, CuZn21, Pb3, SS304 as stated |
| Seal | Neoprene or silicone |
| Operating temperature | Neoprene −20°C to +120°C; Silicone −60°C to +250°C |
| Threads | Metric, NPT, BSP & PG |
| Standards | IEC 60079-0:2017; IEC 60079-1:2014; IEC 60079-31:2022 |
| Ingress protection | IP68 |
| Certificate | CMF 25 INEx 0065 |
| Material finish | Natural finish or nickel finish |
| Applications | Indoor & outdoor |
Size / Selection Table
| Size | Metric | Length | Diameter |
|---|---|---|---|
| 20 | M20x1.5 | 15 | 27.75 |
| 25 | M25x1.5 | 15 | 32 |
| 32 | M32x1.5 | 15 | 41 |
| 40 | M40x1.5 | 15 | 48 |
| 50 | M50x1.5 | 15 | 60 |
| 63 | M63x1.75 | 20 | 73 |
| 75 | M75x1.75 | 20 | 85 |
| 90 | M90x1.75 | 20 | 100 |
| 100 | M100x2.0 | 20 | 110 |
