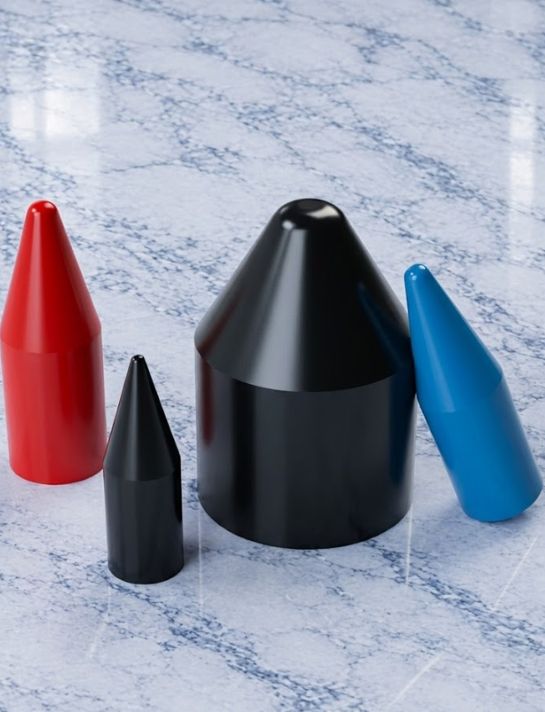

PVC Shrouds
PVC Shrouds
Category: Cable Gland Accessories
Nexus Engitech flexible PVC Shrouds sleeve over brass cable glands to provide an additional layer of weatherproofing and corrosion protection. Made from high-grade UV-resistant PVC, they shield gland bodies from rain, dirt and chemical splashing while fitting all standard BW, CW and A2 gland sizes.
- Push-on PVC sleeve shields cable gland body from weather exposure
- Minimizes accumulation of dirt, moisture and corrosive atmospheric pollutants
- High Grade flexible PVC material resists cracking and UV degradation
- Available in sizes matching all standard BW, CW, A2 and E1FW brass glands
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 20SS to 115 / sizes as listed |
| Materials | LSF, Neoprene, LSOH (silicone) |
| Operating temperature | Neoprene −20°C to +120°C; Silicone −60°C to +250°C |
| Finish / colours | Black, white, red, blue, grey |
| Application | Additional ingress protection and prevention of dust/foreign-substance accumulation around cable glands |
Size / Selection Table
| Size | D | L1 | L |
|---|---|---|---|
| 20SS | 27 | 35 | 60 |
| 20S | 27 | 35 | 60 |
| 20 | 30 | 35 | 61 |
| 25 | 39 | 45 | 77 |
| 32 | 44 | 45 | 81 |
| 40 | 52 | 50 | 95 |
| 50S | 58 | 50 | 100 |
| 50 | 65 | 55 | 105 |
| 63S | 70 | 50 | 120 |
| 63 | 80 | 55 | 115 |
| 75 | 90 | 55 | 115 |
| 90 | 115 | 55 | 130 |
| 100 | 130 | 75 | 140 |
