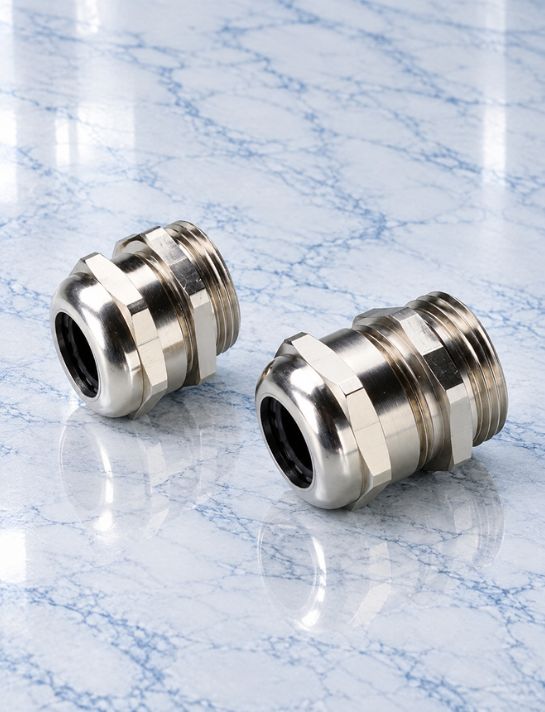

IP68 PG Type
IP68 PG Type
Category: Cable Glands
Our IP68 PG Type brass cable glands are designed for unarmoured cables requiring continuous water submersion protection up to 5 bar pressure. Built with precision PG entry threads and durable neoprene sealing elements, they are ideal for underwater lighting, marine equipment and submersible pump connections.
- Certified IP68 rating for submersion up to 5 bar water pressure
- Precision neoprene rubber seal prevents fluid ingress and protects cable jacket
- Heavy-duty brass construction with clean-cut PG thread profiles
- Ideal for underwater lighting, submersible pumps and outdoor marine gear
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | PG7 to PG63 |
| Cable type | Unarmoured cable |
| Body | BS 2874 / Aluminium |
| Seal | Neoprene |
| Operating temperature | Neoprene −20°C to +120°C |
| Threads | PG thread |
| Seal type | Compression seal |
| Material finish | Natural finish or nickel finish |
| Standards | IEC 60079-0:2017; IEC 60079-31:2022 |
| Ingress protection | IP68, 15 bar as shown in source |
| Applications | Indoor & outdoor |
| Accessories | Neoprene washer, polyamide insert, permanent O-ring & locknut |
Size / Selection Table
| Size | Thread Length | A/F | A/C |
|---|---|---|---|
| PG-7 | 5 | 14 | 15.5 |
| PG-9 | 6 | 17 | 19 |
| PG-11 | 6 | 20 | 22 |
| PG-13.5 | 6 | 22 | 24 |
| PG-16 | 6 | 24 | 26.6 |
| PG-19 | 7 | 27 | 29.2 |
| PG-25 | 8 | 30 | 33 |
| PG-29 | 8 | 40 | 44 |
| PG-36 | 9 | 50 | 55.5 |
| PG-42 | 10 | 55 | 60 |
| PG-48 | 10 | 65 | 70 |
| PG-63 | 14 | 72 | 77 |
