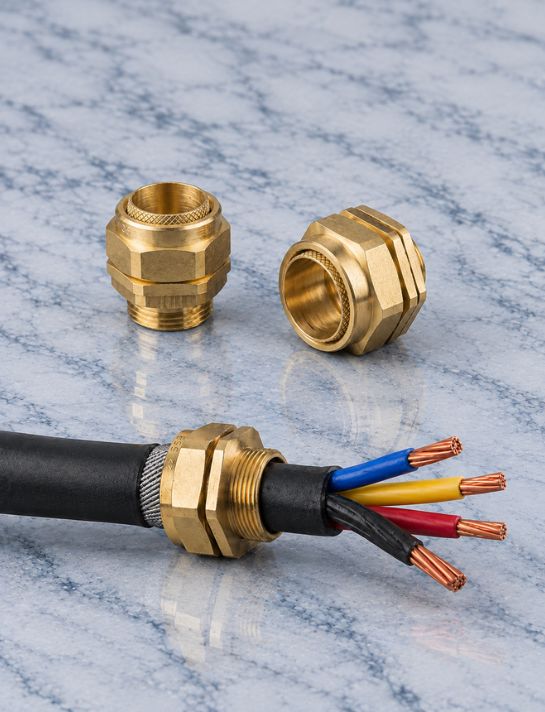

BW-2 Type
BW-2 Type
Category: Cable Glands
Nexus Engitech offers premium BW-2 Type brass cable glands engineered for single-wire armoured (SWA) cables in indoor industrial applications. Manufactured from high-tensile extruded brass, these glands ensure superior mechanical wire termination, robust armor retention and excellent grounding continuity.
- Designed for single-wire armoured (SWA) cables in indoor dry applications
- Manufactured from high-tensile brass for mechanical strength and grounding continuity
- Features a robust two-part armor clamping mechanism for fast and secure installation
- Fully compliant with BS 6121 and IEC standards for industrial power distribution
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 20 mm to 90 mm |
| Cable type | Armoured cable (SWA), suitable for round & flat |
| Body | BS 2874 / CuZn21 / Pb3 as stated in source |
| Threads | Metric, NPT, BSP & PG |
| Seal / construction | Armoured ring; mechanical retention and electrical continuity through armour wire termination |
| Material finish | Natural finish or nickel finish |
| Standards | IEC 60079-0:2017; IEC 60079-31:2022 |
| Ingress protection | IP2X |
| Applications | Indoor & outdoor |
| Accessories | PVC shroud, lock nut & earth tag |
Size / Selection Table
| Code No. | Size | Metric | NPT/BSP | BSW | Thread Length D | Cable Dia A Max. | Cable Dia B Max. | Armour Wire Dia | A/F | A/C |
|---|---|---|---|---|---|---|---|---|---|---|
| BW-220S | 20S | M20x1.5 | ½” | ¾” | 10.00 | 12.50 | 16.00 | 0.90-1.25 | 24.00 | 26.20 |
| BW-220 | 20 | M20x1.5 | ½” | ¾” | 10.00 | 15.00 | 20.00 | 1.25-1.60 | 24.00 | 26.20 |
| BW-225 | 25 | M25x1.5 | ¾” | 1" | 10.00 | 20.50 | 27.50 | 1.60-2.00 | 32.00 | 35.00 |
| BW-232 | 32 | M32x1.5 | 1" | 1-¼" | 10.00 | 27.25 | 34.50 | 1.60-2.00 | 40.50 | 45.00 |
| BW-240 | 40 | M40x1.5 | 1-¼' | 1-½" | 15.00 | 33.30 | 41.50 | 2.00-2.50 | 48.00 | 52.00 |
| BW-250S | 50S | M50x1.5 | 1-½" | 2" | 15.00 | 38.50 | 47.00 | 2.00-2.50 | 55.00 | 60.00 |
| BW-250 | 50 | M50x1.5 | 1-½" | 2" | 15.00 | 44.50 | 52.00 | 2.50 | 61.00 | 65.00 |
| BW-263S | 63S | M63x1.75 | 2" | 2-½" | 15.00 | 51.00 | 59.20 | 2.50 | 70.00 | 75.00 |
| BW-263 | 63 | M63x1.75 | 2" | 2-½" | 15.00 | 56.80 | 65.50 | 2.50 | 75.00 | 80.00 |
| BW-275S | 75S | M75x1.75 | 2-½" | 3" | 15.00 | 64.00 | 74.00 | 2.50-3.15 | 85.00 | 90.00 |
| BW-275 | 75 | M75x1.75 | 2-½" | 3" | 15.00 | 68.20 | 79.50 | 3.15 | 90.00 | 95.00 |
| BW-290 | 90 | M90x1.75 | 3" | 3-½" | 15.00 | 82.80 | 91.00 | 3.15 | 109.00 | 118.00 |
