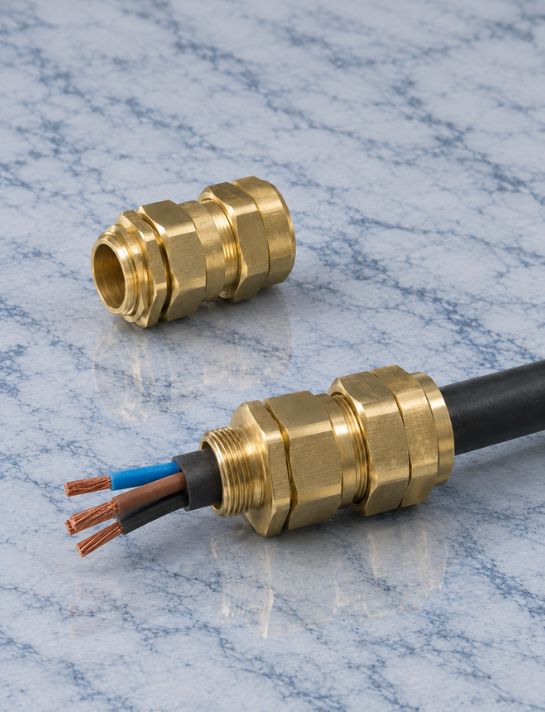

CW-3 Type
CW-3 Type
Category: Cable Glands
Nexus Engitech CW-3 Type cable glands provide high-performance outer sheath environmental sealing alongside robust single-wire armour clamping. Engineered to meet IP66 ingress protection ratings, these brass glands safeguard power connections against extreme weather, dust and coastal moisture exposure.
- Delivers IP66 rated outer sheath sealing to prevent moisture and dust entry
- Integrates precision clamping cones and rings for reliable electrical earth bonding
- Crafted from high-grade brass to withstand harsh outdoor weather and coastal environments
- Tested and certified according to BS 6121 and EN 62444 specifications
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 16 mm to 90 mm |
| Cable type | Armoured cable (SWA), suitable for round & flat |
| Body | BS 2874 / CuZn21 / Pb3 as stated in source |
| Seal | Neoprene or silicone |
| Operating temperature | Neoprene -20°C to +120°C; Silicone −60°C to +250°C |
| Threads | Metric, NPT, BSP & PG |
| Material finish | Natural finish or nickel finish |
| Standards | IEC 60079-0:2017; IEC 60079-31:2022 |
| Ingress protection | IP66 |
| Cable way | Armoured ring |
| Applications | Indoor & outdoor |
| Accessories | PVC shroud, lock nut & earth tag |
Size / Selection Table
| Size | Metric | Length | A/F | A/C |
|---|---|---|---|---|
| 16 | M16x1.5 | 10 | 24 | 26.2 |
| 20S | M20x1.5 | 10 | 24 | 26.2 |
| 20 | M20x1.5 | 10 | 30 | 33 |
| 25S | M25x1.5 | 10 | 36 | 39.2 |
| 25 | M25x1.5 | 10 | 36 | 39.2 |
| 32 | M32x1.5 | 10 | 46 | 50.6 |
| 40 | M40x1.5 | 15 | 55 | 60 |
| 50S | M50x1.5 | 15 | 60 | 65 |
| 50 | M50x1.5 | 15 | 70 | 75 |
| 63S | M63x1.75 | 15 | 75 | 80 |
| 63 | M63x1.75 | 15 | 80 | 85 |
| 75S | M75x1.75 | 15 | 90 | 95 |
| 75 | M75x1.75 | 15 | 100 | 110 |
| 90 | M90x1.75 | 20 | 112 | 122 |
