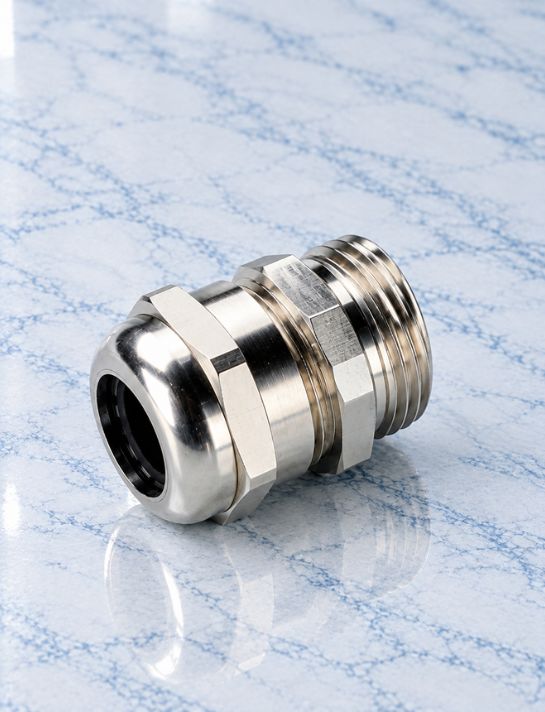

IP68 Metric Type
IP68 Metric Type
Category: Cable Glands
Nexus Engitech IP68 Metric Type cable glands deliver superior waterproof sealing and integrated strain relief for unarmoured electrical wiring. Featuring precision metric entry threads and high thermal resistance, they protect sensitive terminal connections in harsh outdoor industrial applications.
- Delivers IP68 dust-tight and waterproof sealing for metric entry ports
- Built-in strain relief design protects cables from bending stress and tension
- Compatible with all standard metric thread electrical enclosures
- High thermal tolerance for indoor and outdoor industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | M12 to M100 |
| Cable type | Unarmoured cable |
| Body | BS 2874 / Aluminium |
| Seal | Neoprene |
| Operating temperature | Neoprene −20°C to +120°C |
| Threads | Metric thread |
| Seal type | Compression seal |
| Material finish | Natural finish or nickel finish |
| Standards | IEC 60079-0:2017; IEC 60079-31:2022 |
| Ingress protection | IP68 |
| Applications | Indoor & outdoor |
| Accessories | Neoprene washer, polyamide insert, permanent O-ring & locknut |
Size / Selection Table
| Size | Thread Length | A/F | A/C |
|---|---|---|---|
| 12 | 5 | 14 | 26.2 |
| 16 | 5 | 17 | 26.2 |
| 20 | 6 | 22 | 29.5 |
| 25 | 7 | 27 | 39.2 |
| 32 | 8 | 34 | 45 |
| 40 | 8 | 45 | 53 |
| 50 | 9 | 55 | 60 |
| 63 | 10 | 65 | 65 |
| 75 | 14 | 75 | 82 |
| 80 | 14 | 85 | 92 |
| 90 | 14 | 95 | 102 |
| 100 | 14 | 105 | 112 |
