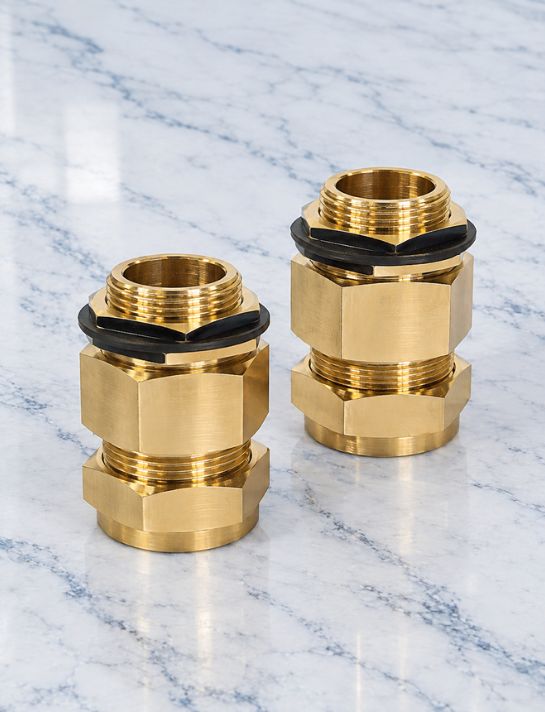

Double Compression Weather-Proof
Double Compression Weather-Proof
Category: Cable Glands
Engineered for outdoor armoured cable installations, our Double Compression Weather-Proof glands provide dual sealing across inner and outer cable sheaths. Rated to IP66, their heavy-duty brass construction ensures complete earth fault continuity and maximum protection against heavy rain, dust and humidity.
- Dual sealing rings isolate internal wiring and outer cable sheath from elements
- Secures steel wire armour to guarantee low-resistance earth continuity
- Rugged brass housing for power stations, solar farms and outdoor switchyards
- Achieves IP66 rating to protect against heavy rain and dust storms
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 16 mm to 115 mm |
| Cable type | Armoured cable (SWA) |
| Body | BS 2874 / CuZn21 / Pb3 as stated in source |
| Seal | Neoprene or silicone |
| Operating temperature | Neoprene −20°C to +120°C; Silicone −60°C to +250°C |
| Threads | Metric, NPT & BSP |
| Seal type | Compression seal |
| Material finish | Natural finish or nickel finish |
| Standards | IEC 60079-0:2017; IEC 60079-31:2022 |
| Ingress protection | IP67 |
| Cable way | Armoured ring |
| Applications | Indoor & outdoor |
| Accessories | PVC shroud, lock nut & earth tag |
| Certificate | CMF 25 INEx 0039 |
Size / Selection Table
| Size | Metric | Length | A/F | A/C |
|---|---|---|---|---|
| 01SS | M20x1.5 | 15 | 21 | 23.5 |
| 01S | M20x1.5 | 15 | 25 | 27 |
| 01 | M20x1.5 | 15 | 27.5 | 30.3 |
| 02 | M25x1.5 | 15 | 30.3 | 33.6 |
| 03 | M25x1.5 | 15 | 31.25 | 34.7 |
| 04 | M32x1.5 | 15 | 37 | 40 |
| 05 | M32x1.5 | 15 | 41 | 45 |
| 06 | M32x1.5 | 15 | 46 | 50 |
| 07 | M40x1.5 | 15 | 51 | 56 |
| 08 | M40x1.5 | 15 | 56 | 62 |
| 09 | M50x1.5 | 15 | 58 | 67 |
| 010 | M50x1.5 | 20 | 66 | 75 |
| 011 | M63x1.75 | 20 | 77.5 | 88 |
| 012 | M75x1.75 | 20 | 83 | 95 |
| 013 | M88x1.75 | 20 | 98 | 110 |
| 014 | M88x1.75 | 20 | 106 | 118 |
| 015 | M100x1.75 | 20 | 115 | 127 |
| 016 | M112x1.75 | 20 | 125 | 135 |
