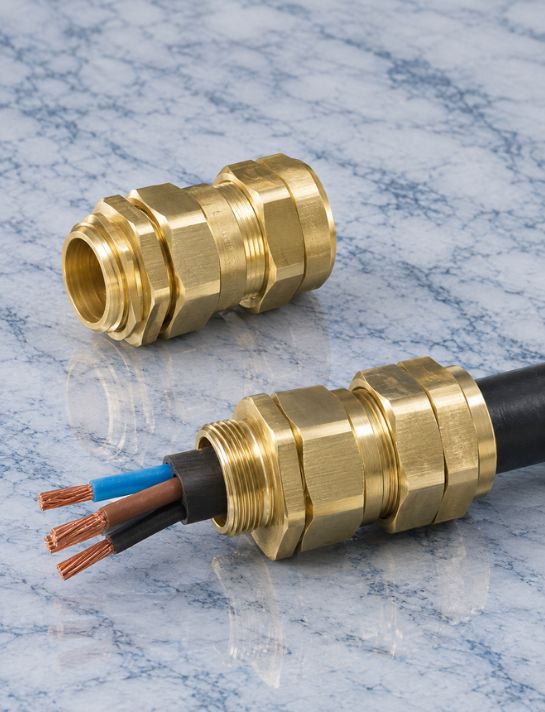

CW-4 Type
CW-4 Type
Category: Cable Glands
Designed for both indoor control panels and outdoor distribution boxes, CW-4 Type cable glands deliver exceptional displacement sealing and armour wire anchorage. Their high-density brass construction resists severe mechanical tension and thermal expansion while maintaining long-term earth continuity.
- Combines outer displacement sealing with heavy-duty steel wire armour clamping
- Holds cables securely under severe physical tension and thermal expansion
- High-density brass housing with optional nickel-plated finish for chemical exposure
- Ideal for indoor control panels, outdoor distribution boxes and marine infrastructure
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 16 mm to 90 mm |
| Cable type | Armoured cable (SWA), suitable for round & flat |
| Body | BS 2874 / CuZn21 / Pb3 as stated in source |
| Seal | Neoprene or silicone |
| Operating temperature | Neoprene −20°C to +120°C; Silicone −60°C to +250°C |
| Threads | Metric, NPT, BSP & PG |
| Material finish | Natural finish or nickel finish |
| Standards | IEC 60079-0:2017; IEC 60079-31:2022 |
| Ingress protection | IP66 |
| Cable way | Armoured ring |
| Applications | Indoor & outdoor |
| Accessories | PVC shroud, lock nut & earth tag |
Size / Selection Table
| Size | Metric | Length | A/F | A/C |
|---|---|---|---|---|
| 16 | M16x1.5 | 10 | 22 | 24.25 |
| 20S | M20x1.5 | 10 | 22 | 24.25 |
| 20 | M20x1.5 | 10 | 26 | 28.75 |
| 25S | M25x1.5 | 10 | 30 | 33 |
| 25 | M25x1.5 | 10 | 34 | 38 |
| 32S | M32x1.5 | 14 | 40.5 | 45 |
| 40S | M40x1.5 | 14 | 44.5 | 50 |
| 40 | M40x1.5 | 14 | 47.5 | 52 |
| 50S | M50x1.5 | 14 | 56.5 | 61.5 |
| 50 | M50x1.5 | 15 | 61 | 65 |
| 63S | M63x1.75 | 15 | 68 | 73 |
| 63 | M63x1.75 | 15 | 75 | 80 |
| 75S | M75x1.75 | 15 | 83.5 | 89 |
| 75 | M75x1.75 | 15 | 90 | 95 |
| 90 | M90x1.75 | 16 | 100 | 110 |
