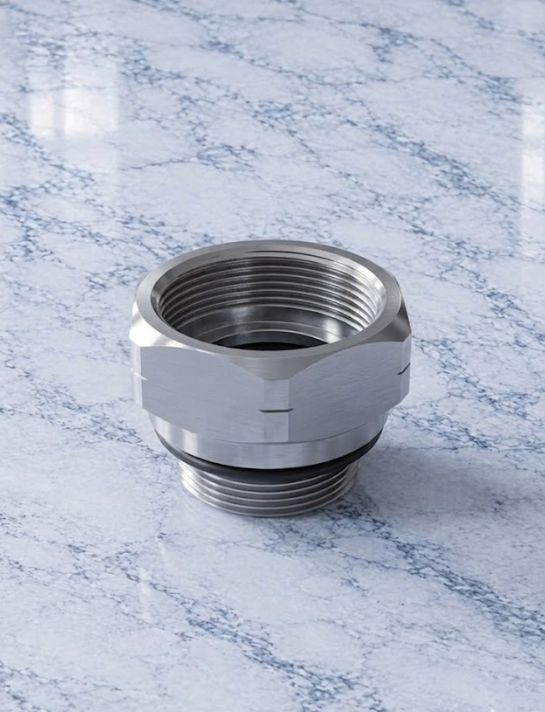

Adaptor (Metric Type)
Adaptor (Metric Type)
Category: Cable Gland Accessories
Nexus Engitech Metric Adaptors facilitate seamless thread size conversion between cable entry devices and electrical enclosure ports. Manufactured from high-grade brass, they preserve IP66/IP68 ingress ratings and Ex safety standards when integrating different metric thread components in control panels.
- Converts smaller metric enclosure holes to larger metric cable gland sizes
- Preserves enclosure Ex rating and IP ingress protection integrity
- High quality brass fitting with clean, durable metric threads
- Widely used in power panels, junction boxes and control cabinets
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | M16 to M100 & NPT to 4 in NPT combinations as listed |
| Threads | Metric, NPT, BSP & PG |
| Body | BS 2874, SS316L |
| Material finish | Natural finish / nickel finish |
| Operating temperature | −20°C to +120°C |
| Ingress protection | IP67 |
| Standards | IEC 60079-0:2017 |
Size / Selection Table
| Type | From | To | Length |
|---|---|---|---|
| Adaptor | M16 | M20 | 34 |
| Adaptor | M20 | M25 | 34 |
| Adaptor | M32 | M40 | 34 |
| Reducer | M20 | M12 | 22 |
| Reducer | M32 | M20 | 22 |
| Reducer | M63 | M40 | 24 |
| Reducer | M100 | M75 | 30 |
