A2 Type
A2 Type
Category: Cable Glands

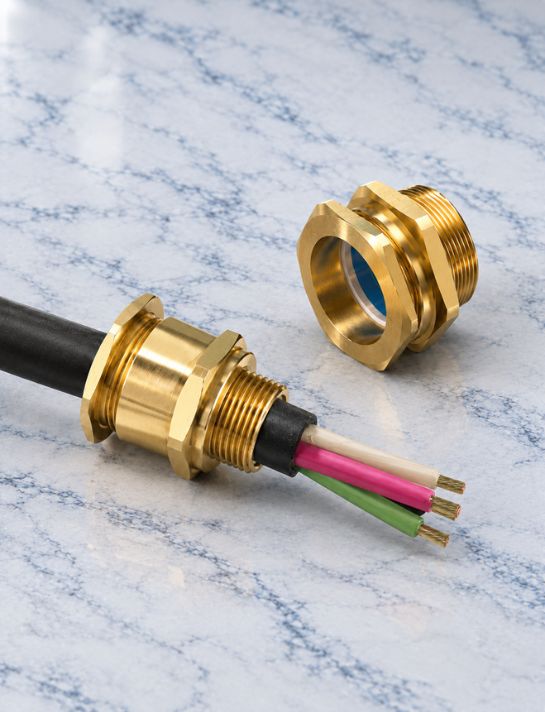

Nexus Engitech A2 Type compression cable glands are crafted for flexible unarmoured, rubber and plastic jacketed cables in industrial setups. Featuring high-grade elastomeric sealing rings, they provide certified IP66/IP68 dust-tight and waterproof protection for machinery and junction enclosures.
- Precision compression gland for flexible unarmoured, rubber, or plastic cables
- High-performance elastomeric seal ensures IP66/IP68 water and dust tight rating
- Premium machined brass construction allows easy installation in tight spaces
- Suitable for commercial automation systems, machinery and weather-exposed junction boxes
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 16 mm to 100 mm |
| Cable type | Unarmoured cable |
| Body | BS 2874 / CuZn21 / Pb3 as stated in source |
| Seal | Neoprene or silicone |
| Operating temperature | Neoprene −20°C to +120°C; Silicone −60°C to +250°C |
| Threads | Metric, NPT & BSP |
| Seal type | Compression seal |
| Material finish | Natural finish or nickel finish |
| Standards | IEC 60079-0:2017; IEC 60079-31:2022 |
| Ingress protection | IP66 |
| Applications | Indoor & outdoor |
| Accessories | PVC shroud, lock nut & earth tag |
Size / Selection Table
| Size | Metric | Length | A/F | A/C |
|---|---|---|---|---|
| 16 | M16x1.5 | 10 | 24 | 26.2 |
| 20S | M20x1.5 | 15 | 24 | 26.2 |
| 20 | M20x1.5 | 15 | 27 | 29.5 |
| 25 | M25x1.5 | 15 | 36 | 39.2 |
| 32 | M32x1.5 | 15 | 41 | 45 |
| 40 | M40x1.5 | 15 | 49 | 53 |
| 50S | M50x1.5 | 15 | 54.5 | 60 |
| 50 | M50x1.5 | 15 | 60 | 65 |
| 63S | M63x1.75 | 20 | 67.5 | 72 |
| 63 | M63x1.75 | 20 | 75 | 80 |
| 75S | M75x1.75 | 20 | 80 | 85 |
| 75 | M75x1.75 | 20 | 84 | 90 |
| 90 | M90x1.75 | 25 | 106 | 114 |
| 100 | M100x1.75 | 25 | 122 | 130 |
