Category: Lightning Protection System
Nexus Engitech supplies complete Lightning Protection Systems designed for structural safety and strike energy dissipation. Our comprehensive range includes air terminal rods, high-purity copper tapes, test clamps and earth plates engineered for commercial buildings and sub-stations per IEC 62305.
- Taper pointed air rods, multipoints and ridge saddles for effective lightning strike interception
- High-purity electrolytic copper tapes and circular conductors for safe energy down-conductance
- Heavy-duty brass, gunmetal and aluminum DC clips, test clamps and junction clamps
- Engineered to shield commercial buildings, industrial towers and sub-stations

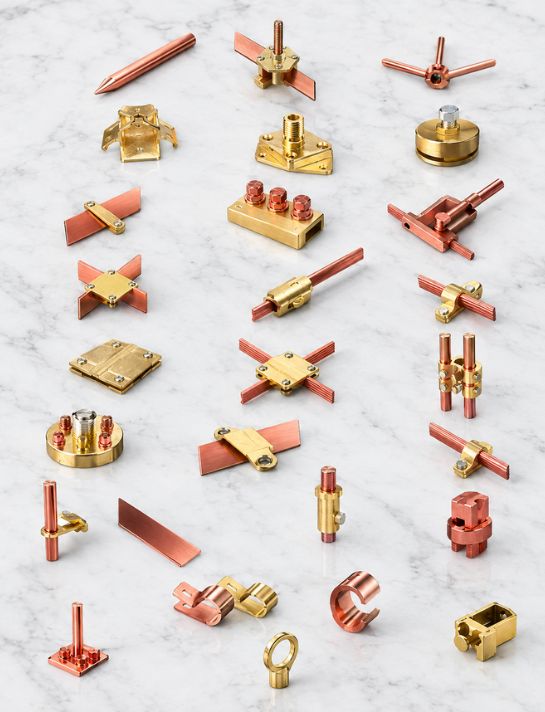

Lightning Protection System Range & Specifications
Taper Pointed Rod
Air-terminal rod used as the interception point for lightning strikes in a lightning protection system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 5/8 in & 3/4 in |
| Lengths | 1.20 m to 2.40 m; additional 3.00 m variant shown |
| Threads | BSW; Metric optional |
| Material | Electrolytic copper or aluminium |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Diameter | 16 mm / 20 mm corresponding to 5/8 in / 3/4 in |
| Lengths shown | 300, 500, 1000, 1500, 2000 and 3000 mm |
| Code family | VMLTR |
Air Terminal Tape Base
Base fitting for connecting lightning-protection tape to the air terminal rod on the roof network.
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 5/8 in & 3/4 in |
| Material | Gun metal or brass |
| Threads | BSW & Metric optional |
| Function | Connects tape to the air rod in the roof network |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Tape | 30 x 6 mm maximum tape shown |
| Rod diameters | 5/8 in and 3/4 in |
| Code family | VMLTTB |
Multi Point
Provides multiple pointed interception points and is installed at the highest suitable location on a protected structure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 5/8 in & 3/4 in |
| Material | Electrolytic copper, brass or gun metal |
| Function | Multipoint air-terminal accessory installed at the highest area of a structure/building |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Thread variants | 5/8 in and 3/4 in |
| Code examples | VMLMP-58, VMLMP-34 |
Ridge Saddle
Roof-ridge mounting saddle for fixing an air rod while providing connection to lightning-protection tape.
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 5/8 in & 3/4 in |
| Material | Gun metal or brass |
| Function | Fixes air rod and connects to tape |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Rod diameters | 14, 15, 16 and 20 mm variants shown |
| Max tape | 25x6 or 30x6 mm |
| Code family | VMLRS |
Air Terminal Conductor Base (Flat Saddle)
Flat mounting base used to support an air rod and connect it to the conductor network on a flat surface.
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 5/8 in |
| Material | Gun metal or brass |
| Function | Supports and connects rods to circular conductors on a flat surface |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Rod lengths | 50, 75 and 90 mm |
| Rod diameter | 15 mm shown |
| Thread | 5/8 in |
Screw Down Test Clamp
Test/inspection clamp that allows the lightning conductor or tape to be disconnected/accessed for testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Gun metal or brass |
| Function | Provides easy access to copper tape/conductor for inspection or testing |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Max tape size | 25x3 and 30x6 mm shown |
| Code family | VMSDC |
DC Tape Clip
Fixing clip for securing flat copper tape to a building or structure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 3 mm to 6 mm tape thickness |
| Material | Gun metal, brass or aluminium |
| Function | Secures copper tape to a building; tape is retained by two screws |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Tape sizes shown | 20x3 through 50x6 mm combinations |
| Code family | VMDTC |
Junction Clip
Junction/test clamp for joining lightning/earthing tapes and providing a convenient test disconnection point.
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 3 mm to 10 mm |
| Material | Gun metal, brass or aluminium |
| Function | Joins a range of tape and allows disconnection of the earthing system for testing |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Tape sizes shown | 25x3, 25x6, 40x6, 50x3, 50x6 and 50x10 mm |
| Code family | VMJTC |
Copper Tee Clamp
T-shaped clamp for branching a round conductor in a lightning protection network.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Gun metal, brass or EC copper |
| Function | Tee connection for round cable conductors |
Size / Selection Table
| Selection parameter | Source catalogue data |
|---|---|
| Conductor sizes | 50, 75 and 90 mm² |
| Code family | VMCTC |
Square Tape Clamp
Clamp for straight-through and cross-joint connections of flat lightning-protection tapes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Gun metal or brass |
| Function | Forms straight-through cross connections and joins tape |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Tape sizes | 25x3, 25x6, 31x3, 31x6, 40x6 and 5x6 mm |
| Code family | VMSTC |
Test Clamp
Provides a detachable/testable connection for conductor or tape joints in the lightning protection system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 25 mm² to 95 mm² |
| Material | Gun metal or brass |
| Function | End-to-end joint / test connection |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Conductor sizes | 25, 50, 70 and 95 mm² |
| Code family | VMTC |
Heavy Duty Conductor Saddle
Heavy-duty support saddle for larger PVC-covered conductors and cables.
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 25 mm² to 185 m² |
| Material | Gun metal or brass |
| Function | Supports PVC-covered conductors or cables |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Conductor ranges | 25-35, 50-70, 90-120 and 150-180 mm² |
| Code family | VMHDC |
Square Cable to Tape Joint Clamp
Makes straight-through or T-type joints between flat tapes and cables.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Gun metal or brass |
| Function | Connects tapes and cables for straight-through or T joints |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Tape sizes | 25-3 and 25-6 mm shown |
| Conductor sizes | 25, 35 and 50 mm² shown |
| Code family | VMSCT |
Square Cable / Conductor Joint Clamp
Four-screw clamp for making secure straight or T joints between round conductors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Gun metal or brass |
| Function | Four-screw connection for round conductors |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Conductor sizes | 50, 70 and 95 mm² |
| Code family | VMSCJ |
Re-BAR Clamp
Connects reinforcement bar/pipe members to a conductor in the bonding network.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Gun metal or brass |
| Function | Bonding to reinforcement bars, pipes and similar members |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Rod/pipe sizes | 3-18 mm and 8-38 mm variants shown |
| Conductor diameter | 8 mm shown |
| Code family | VMRBC |
Plate Test Clamp
Testable plate clamp used between the lightning down conductor and earthing system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Gun metal or brass |
| Function | Connection between down-conductor and earthing system; T-joint or straight-through tape joint |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Tape sizes | 2x3, 25x6 and 50x6 mm |
| Code family | VMPTC |
Tape Clip
Alternative flat-tape fixing clip for securing lightning-protection tape to structures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Brass or aluminium |
| Function | Alternative to DC clip; holds flat tape |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Tape sizes | 20x3, 25x3, 25x6, 40x3 and 50x3 mm shown |
| Code family | VMDTC |
Circular Conductor Clip
Two-hole fixing clip for securing circular conductors to a building or structure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Gun metal or brass |
| Function | Secures circular copper conductor to buildings/structures using two-hole base |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Conductor sizes | 25, 50, 70 and 95 mm² |
| Code family | VMCCC |
Rod Bracket
Side bracket for mounting a lightning air rod away from the building face.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Gun metal or brass |
| Function | Provides projection from building face where an air rod is side-mounted |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Rod sizes | 14, 16 and 20 mm |
| Code family | VMLRB |
Rod to Cable Coupling
Coupling used to connect an air rod to a conductor or cable assembly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Gun metal or brass |
| Function | Connects air rod to cable/round conductor with bolts |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Rod size | 15 mm shown |
| Conductor sizes | 70 and 90 mm² shown |
| Code family | VMRCC |
Split Bolt Connector
Mechanical/electrical connector for joining standard copper conductors across a broad conductor-size range.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Brass or copper |
| Function | Wide-range connector for standard copper conductors |
Size / Selection Table
| Selection parameter | Source catalogue data |
|---|---|
| Conductor sizes | 10, 16, 25, 35, 50, 70, 95, 120, 150, 185 and 240 mm² shown |
| Code family | VMSBC |
Copper Tape
Flat high-conductivity copper conductor used as part of the lightning protection and earthing network.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Electrolytic copper |
| Function | High-conductivity tape, mostly available in coil form |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Tape sizes shown | 20x3, 25x3, 25x6, 31x3, 31x6, 38x3, 38x6, 40x4, 40x6, 50x3 and 50x6 mm |
| Code family | VMLCT |
One Hole Cable Clip
Single-hole clip for fixing a conductor to a structure using a suitable screw/plug.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Copper, brass or aluminium |
| Function | Fixes conductor to structures with a single-hole mounting |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Conductor sizes | 25, 35, 50, 70, 120, 150 and 185 mm² |
| Code family | VMOHC |
C-Crimp Connector
C-shaped compression connector for parallel/tap connections between copper conductors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Electrolytic copper |
| Function | Parallel or tap connection between copper cables; suitable for installation of C-crimp connectors |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Conductor combinations | 16/35, 25/35, 50/70, 70/70, 95/120, 120/240 and 150/240 mm² shown |
| Code family | VMLCC |
Earth Copper Plate
Solid earth plate electrode for earthing locations where rod installation is unsuitable or impractical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Thickness | 3 mm to 5 mm |
| Material | Electrolytic copper; copper-bonded variants also shown |
| Function | Part of earthing network; used where earth rods are unsuitable |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Plate sizes | 500x500, 600x600, 900x900 and 1000x1000 mm |
| Thicknesses | 3 mm and 5 mm |
| Material variants | EC copper and copper-bonded |
Earth Copper Lattice Plate
Lattice earth electrode/bonding plate for providing multiple earthing/bonding points and continuity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Thickness | 2 mm to 5 mm |
| Material | Electrolytic copper |
| Function | Provides earthing continuity and multiple bonding points |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Lattice sizes | 500x500, 600x600, 900x900 and 1000x1000 mm |
| Copper tape | 25x2, 25x3 and 25x5 mm variants shown |
| No. of strips | 10 or 12 depending on size |
Cast Earth Plate
Cast plate connection point for integrating earthing into structures with electrically continuous reinforcement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Gun metal, electrolytic copper |
| Function | Used where reinforcing bars are electrically continuous and can be used as earthing connection points |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Conductor sizes | 120, 120 and 240 mm² variants shown |
| Hole options | 2-hole and 4-hole variants |
| Code family | VMCEP |
Eye Bolt
Threaded lifting/attachment fitting for securing cables or related components to suitable structures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Gun metal, brass |
| Function | Commonly used to attach cables/objects using a threaded eye |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Rod/thread sizes | 5/8 in and 3/4 in shown |
| Code family | VMLEB |
Brass Line Tap (V-Type)
V-type line tap for connecting cable cores to busbars or other conductors in power distribution applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Brass, copper |
| Function | Connects power-cable cores to busbar; suitable for all kinds of cable cores |
| Finish options | Brass natural and electroplated nickel-plated forms |
Size / Selection Table
| Selection parameter | Size / Selection Table |
|---|---|
| Conductor ranges | 16-25, 35-50, 50-70 and 95-120 mm² shown |
| Code family | VMLVT |
Ready to Discuss Lightning Protection for Your Project?
Connect with Nexus Engitech on whatsApp to discuss product specifications, sizes, applications and project requirements. Our products are available across cable glands, accessories, earthing, lightning protection and industrial electrical panels, with solutions developed to suit specific requirements.
